BV5200RN
Call for Pricing

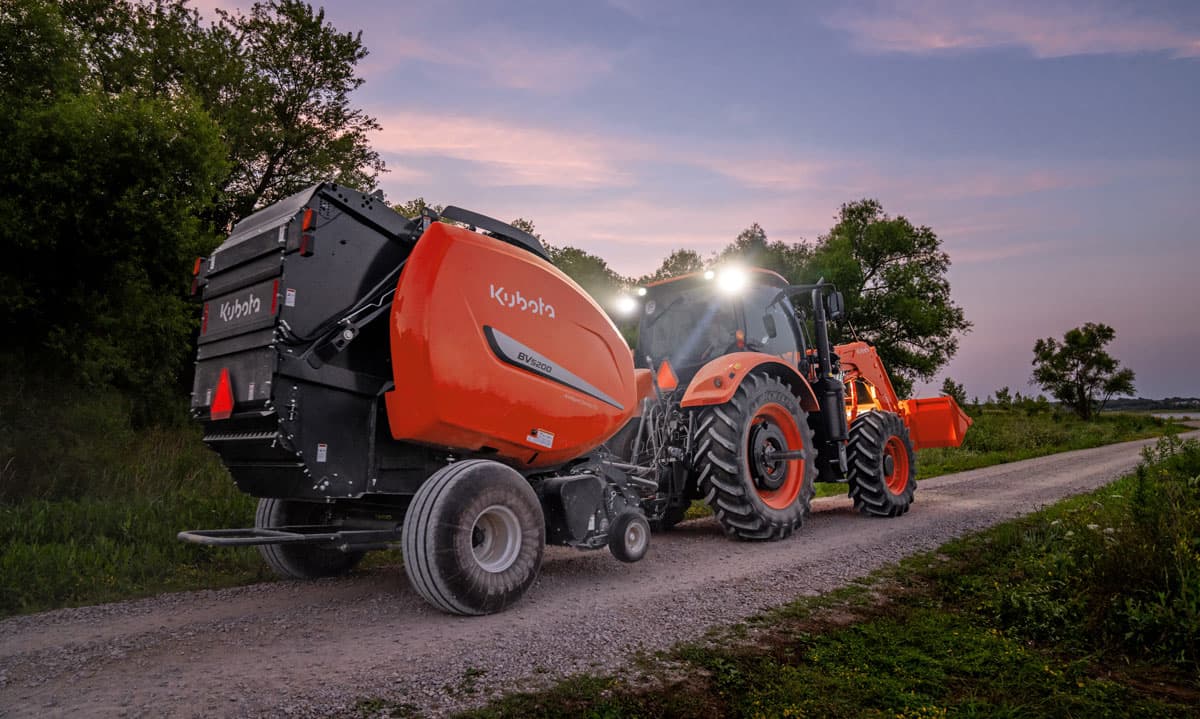

Your hay and silage deserve the best and that’s why the Kubota BV5200RN is designed to produce the best 4x6 bales in the market. With its five endless belts and three crop rollers, this baler is efficient and high capacity. Net wrap binding leaves you with no loose bales and with both a hydraulic pickup lift and a hydraulic drop floor unblocking system, you’ll move from bale to bale with the speed you’ve been searching for, an 88” wider working width, and less wear and tear… it’s time to get to work and with standard features like auto chain oilers, ISOBUS capability, and optional moisture sensor the BV5200RN is raring to go!
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
Up to 0% A.P.R. for 60 Months plus $1,500 Loyalty Cash* on your new Kubota BV Series!
BALER SERIES
description can go here...
Specifications
1 1/4" Main Drive Chain
1 Main Chain
Bale Formation
Bale Height in.
Bale Ramp
Bale Width in.
Binding
Cam Clutch Protection
Diameter Max in.
Diameter Min in.
Endless Belts
Flare to Flare Pickup
Focus Terminal
Fork Feeder
Height in.
Hydraulic Outlets
ISOBUS
IsoMatch Tellus
Length in.
Lift
Minimum PTO Horsepower Required HP/KW
Monitor
Number of Tine Rows
PTO Protection
PTO rpm
Pickup Protection
Pneumatic Gauge Wheel
Protection, Cam Clutch
Shear Bolt Protection
Tine Spacing in.
Unblocking System
Weight lbs. (kg)
Wheels and Axles | 11.5/80-15
Wheels and Axles | 15.0/55-17
Wheels and Axles | 19.0/45-17
Wheels and Axles | 500/45-22.5
Wide Angle PTO Shaft
Width in.
Windguard
Working Width in.
1 1/4" Main Drive Chain
Standard
1 Main Chain
1.25"
Bale Formation
5 Belts + 3 Rollers
Bale Height in.
60"
Bale Ramp
Standard
Bale Width in.
47"
Binding
Net Only
Cam Clutch Protection
Standard
Diameter Max in.
79"
Diameter Min in.
24"
Endless Belts
Standard
Flare to Flare Pickup
86"
Focus Terminal
Standard
Fork Feeder
N/A
Height in.
111"
Hydraulic Outlets
1SA + 1DA
ISOBUS
Standard
IsoMatch Tellus
Optional
Length in.
187"
Lift
Hydraulic
Minimum PTO Horsepower Required HP/KW
70
Monitor
TellusGO/IsoMatch
Number of Tine Rows
5
PTO Protection
CamClutch
PTO rpm
540CV
Pickup Protection
Radial Clutch
Pneumatic Gauge Wheel
Standard
Protection, Cam Clutch
N/A
Shear Bolt Protection
N/A
Tine Spacing in.
2.36"
Unblocking System
Hydraulic Drop floor
Weight lbs. (kg)
7275
Wheels and Axles | 11.5/80-15
N/A
Wheels and Axles | 15.0/55-17
Standard
Wheels and Axles | 19.0/45-17
Optional
Wheels and Axles | 500/45-22.5
Optional
Wide Angle PTO Shaft
Standard
Width in.
99"
Windguard
Roller wind guard
Working Width in.
86"
